Part no.: U2-BCL-9HP48-B
B-clutch complete
Bigger picture
On request
Genuine used
Genuine used
Identification
9HP48QX, 9HP48 - used part - no warranty
9HP48QX, 9HP48 - used part - no warranty

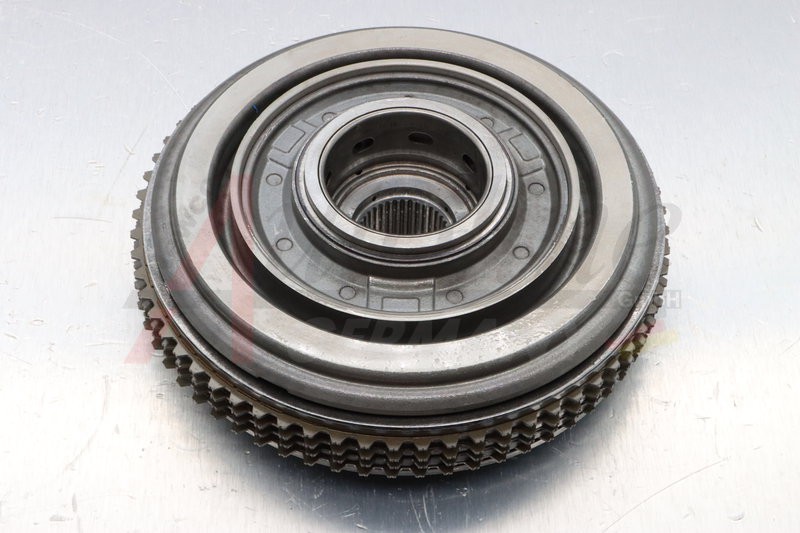

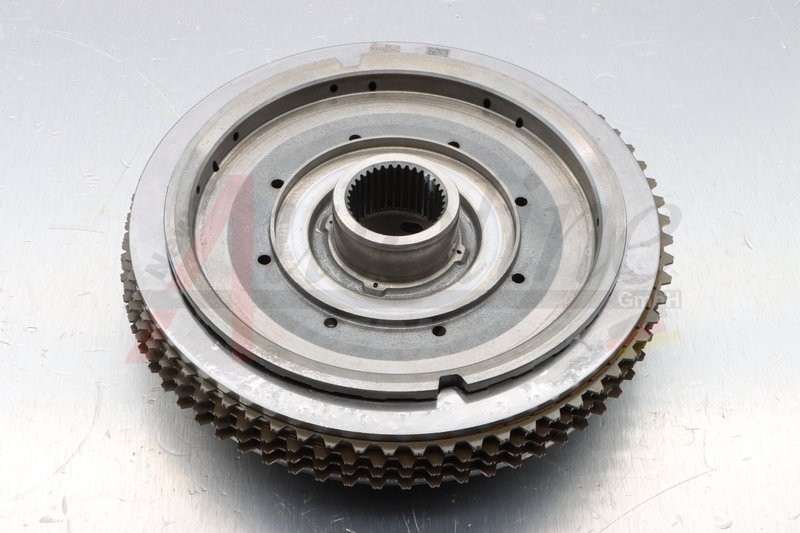

complete B-clutch,
1094 272 019 – disc carrier
total disc carrier hight 51,6mm, carrier height 32,2 mm, splining input shaft 36,
1 wave spring washer 1,16 mm - 30 teeth - outer diameter 162,8 mm,
4 steel discs 3,0 mm each - 30 teeth - outer diameter 163,15 mm,
1 end disc 3,2 mm - 30 teeeth - outer diameter 163,25 mm
4 double sided friction discs 2,25 mm each - 64 teeth - inner diameter 140,5 mm,
used part - quality: no or just slight signs of use, item might be useable as it is - can be ordered only if in stock - subject to prior sale.
If bearings, bushings, seals, gaskets and washers are supplied they are free of charge as they may have to be replaced - missing or damaged items of this kind will not be replaced by us.
All used parts are delivered without warranty.
Various executions of this part are available for these transmissions
PLEASE CHECK CAREFULLY BEFORE INSTALLATION. WE WILL NOT TAKE RESPONSIBILITY FOR DAMAGES RESULTING FROM THE INSTALLATION OF A WRONG SPARE PART/COMPONENT.
The distinguishing features known to us to this day are stored for each article.
1094 272 019 – disc carrier
total disc carrier hight 51,6mm, carrier height 32,2 mm, splining input shaft 36,
1 wave spring washer 1,16 mm - 30 teeth - outer diameter 162,8 mm,
4 steel discs 3,0 mm each - 30 teeth - outer diameter 163,15 mm,
1 end disc 3,2 mm - 30 teeeth - outer diameter 163,25 mm
4 double sided friction discs 2,25 mm each - 64 teeth - inner diameter 140,5 mm,
used part - quality: no or just slight signs of use, item might be useable as it is - can be ordered only if in stock - subject to prior sale.
If bearings, bushings, seals, gaskets and washers are supplied they are free of charge as they may have to be replaced - missing or damaged items of this kind will not be replaced by us.
All used parts are delivered without warranty.
Various executions of this part are available for these transmissions
PLEASE CHECK CAREFULLY BEFORE INSTALLATION. WE WILL NOT TAKE RESPONSIBILITY FOR DAMAGES RESULTING FROM THE INSTALLATION OF A WRONG SPARE PART/COMPONENT.
The distinguishing features known to us to this day are stored for each article.
B-clutch
1
9HP48QX, 9HP48
