Part No.: TO-EDC-0C8-B1-4,6 (Old no.: TO-EDC-0C8-B1-4,6)

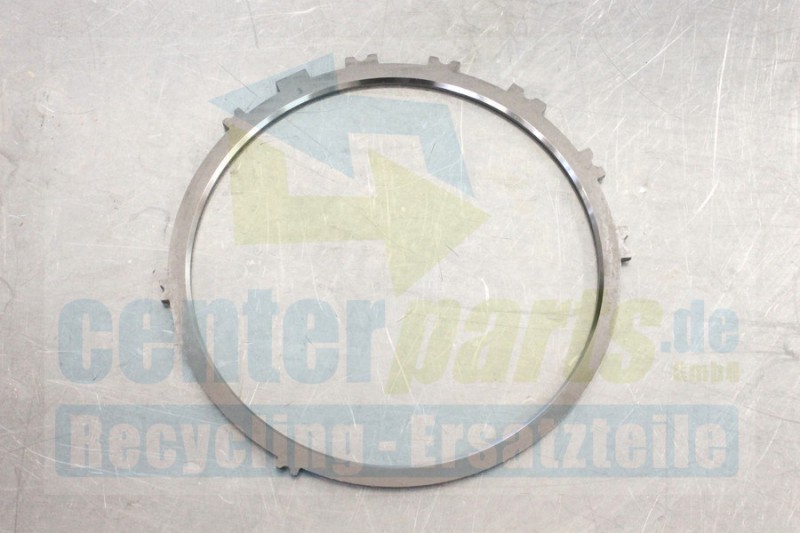

end disc

x
On request
Brand: Take Out from New Transmission
To fit for
Aisin Warner

Info
8 double teeth, 1 lug - thickness 4,6 mm - outer diameter 197/206 mm - inner diameter 178 mm

Number and design of teeth may vary. we aso found B1 end discs with 5 double and 4 single teeth and also with 4 double an 1 single teeth. If they are all intechangeable is not known to us.

These discs colud be available in different thicknesses. PLEASE CHECK CAREFULLY BEFORE INSTALLATION. WE WILL NOT TAKE RESPONSIBILITY FOR DAMAGES RESULTING FROM THE INSTALLATION OF A WRONG SPARE PART/COMPONENT.

design, teeth and diameters of end and apply discs are identical - check the required thickness before installation

Location / Function
B1 brake

Application
0C8 (TR80SD)
