Part no.: O-FRD-5L40E-DC/LR/2C-IT

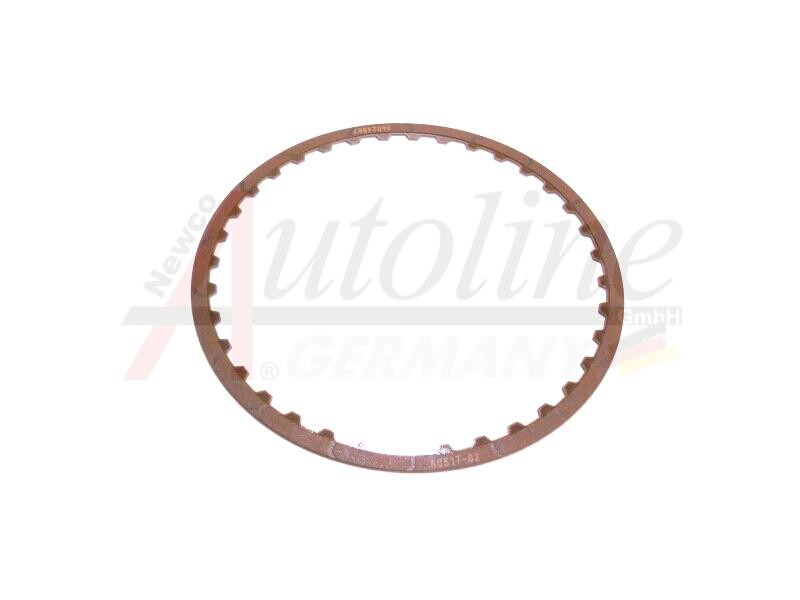

friction disc, inner teeth
Bigger picture
In stock
Dynax/Exedy
Dynax/Exedy
Identification
5L40E (M82 - A5S360R, A5S390R) - 5L50E (M22) - 2nd coast clutch - 2002-up
5L40E (M82 - A5S360R, A5S390R) - 5L50E (M22) - 2nd coast clutch - 2002-up
Exedy/Dynax single sided friction disc - supplier info: thickness - 0,063" / 1,60 mm - 36 internal teeth - outer diamter 6,925" / 175,9 mm - inner diameter 6,106" / 155,1 mm - Tan/brown friction material - grooved - 2002-up
During the end of 2001 and beginning 2002 the friction disc for 2nd coast was changed from O-FRD-5L40E-DC/LR/2C-IT to O-FRD-5L40E-2CO-IT - as not all vehicles / transmissions were changed at the same date, please check carefully for vehicles/transmissions from that period which friction disc is required for your job.
The friction disc with inner teeth for the direct clutch and low reverse clutch remained the same as far as we know.
5L40E, 5L50E use 3 of these discs in second coast clutch
4L40E does not have a 2nd coast clutch
During the end of 2001 and beginning 2002 the friction disc for 2nd coast was changed from O-FRD-5L40E-DC/LR/2C-IT to O-FRD-5L40E-2CO-IT - as not all vehicles / transmissions were changed at the same date, please check carefully for vehicles/transmissions from that period which friction disc is required for your job.
The friction disc with inner teeth for the direct clutch and low reverse clutch remained the same as far as we know.
5L40E, 5L50E use 3 of these discs in second coast clutch
4L40E does not have a 2nd coast clutch
2nd coast
3
5L40E (M82), 5L50E (M22) - A5S390R, A5S360R
