Part no.: O-FRD-5L40E-2ND-IT

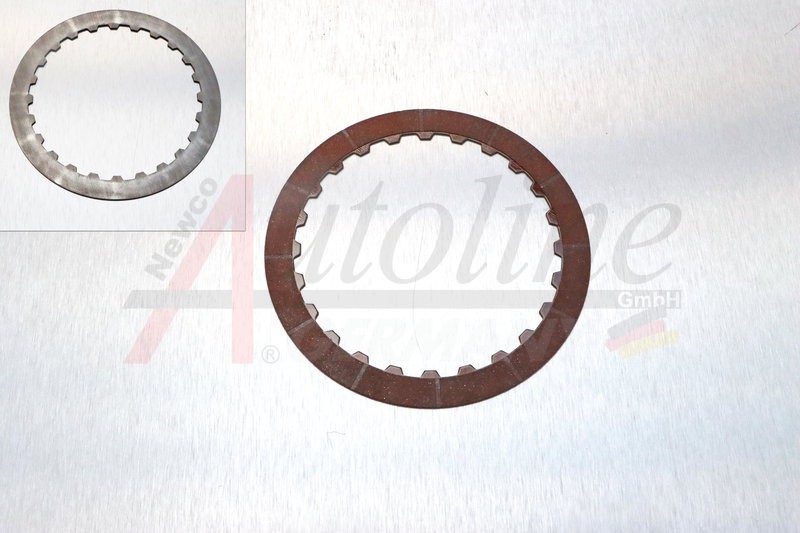

friction disc, inner teeth
Bigger picture
In stock
Dynax/Exedy
Dynax/Exedy
Exedy/Dynax single sided friction disc - supplier info: thickness 0,063" / 1,60 mm - 24 internal teeth - outer diameter 5,433" / 138 mm - inner diameter 4,217" / 107,1 mm- Tan/brown friction material - Grooved - 2002-up
During the end of 2001 and beginning 2002 the friction disc for 2nd clutch was changed from O-FRD-5L40E-2CL-IT-99 to O-FRD-5L40E-2CL-IT-02 - as not all vehicles / transmissions were changed at the same date, please check carefully for vehicles/transmissions from that period which friction disc is required for your job.
5L40E, 5L50E use 5 of these discs in second clutch
4L40E does not have a 2nd clutch
During the end of 2001 and beginning 2002 the friction disc for 2nd clutch was changed from O-FRD-5L40E-2CL-IT-99 to O-FRD-5L40E-2CL-IT-02 - as not all vehicles / transmissions were changed at the same date, please check carefully for vehicles/transmissions from that period which friction disc is required for your job.
5L40E, 5L50E use 5 of these discs in second clutch
4L40E does not have a 2nd clutch
2nd Clutch
5
5L40E (M82 - A5S360R, A5S390R) - 5L50E (M22)
