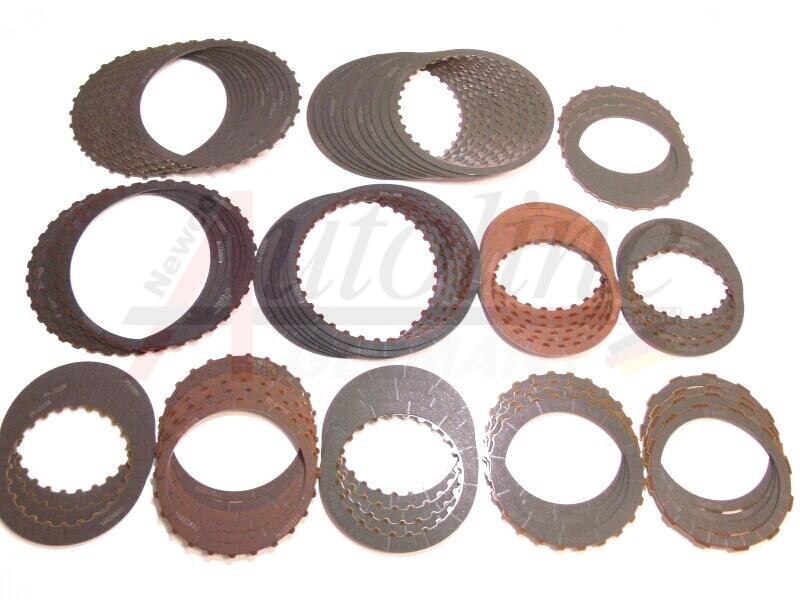

friction disc kit

70 discs - RWD upto 2001 - (not for 4WD X5, Range Rover)

content:
4x direct clutch - thickness 0,063" / 1,60 mm - 36 internal teeth - outer diameter 6,803" / 172,8 mm - inner diameter 5,791" / 147,1 mm - grey friction material - 1999-up
4x direct clutch - thickness 0,063" / 1,60 mm - 36 external teeth - outer diameter 7,071" / 179,6 mm - inner diameter 6,102" / 155 mm - grey friction material - 1999-up
3x overdrive clutch - thickness 0,063" / 1,60 mm - 36 internal teeth - outer diameter 7,063" / 179,4 mm - inner diameter 6,146" / 156,1 mm - grey friction material - 1999-up
3x overdrive clutch - thickness 0,063" / 1,60 mm - 36 external teeth - outer diameter 7,303" / 185,5 mm - inner diameter 6,457" / 164 mm - grey friction material - 1999-up
4x coast clutch - thickness 0,063" / 1,60 mm - 24 internal teeth - outer diameter 4,852" / 123,25 mm - inner diameter 3,815" / 96,9 mm - grey friction material - 1999-up
4x coast clutch - thickness 0,063" / 1,60 mm - 12 external teeth - outer diameter 5,157" / 131 mm - inner diameter 4,122" / 104,7 mm - grey friction material - 1999-up
4x forward clutch - thickness 0,063" / 1,60 mm - 24 internal teeth - outer diameter 5,114" / 129,9 mm - inner diameter 3,815" / 96,9 mm - grey friction material - 1999-up
4x forward clutch - thickness 0,063" / 1,60 mm - 24 external teeth - outer diameter 5,366" / 136,3 mm - inner diameter 4,122" / 104,7 mm - grey friction material - 1999-up
3x intermediate clutch - thickness 0,063" / 1,60 mm - 24 external teeth - outer diameter 5,545" / 140,85 mm - inner diameter 4,122" / 104,7 mm - grey friction material - 1999-up
3x intermediate clutch- thickness 0,063" / 1,60 mm - 24 internal teeth - outer diameter 5,311" / 134,9 mm - inner diameter 3,815" / 96,9 mm - grey friction material - 1999-up
5x low/reverse clutch - thickness 0,063" / 1,60 mm - 36 internal teeth - outer diameter 6,803" / 172,8 mm - inner diameter 5,791" / 147,1 mm - grey friction material - 1999-up
5x low/reverse clutch - thickness 0,063" / 1,60 mm - 29 external teeth - outer diameter 7,069" / 179,55 mm - inner diameter 6,102" / 155 mm - grey friction material - 1999-up
6x 2nd clutch - thickness 0,063" / 1,60 mm - 24 internal teeth - outer diameter 5,115" / 130 mm - inner diameter 4,217" / 107,1 mm - Tan/brown friction material - 1999-2001
6x 2nd clutch - thickness 0,063" / 1,60 mm - 24 external teeth - outer diameter 5,358" / 136,1 mm - inner diameter 4,469" / 113,5 mm - Tan/brown friction material - 1999-2001
3x reverse clutch - thickness 0,063" / 1,60 mm - 36 internal teeth - outer diameter 7,063" / 179,4 mm - inner diameter 6,146" / 156,1 mm - grey friction material - 1999-up
3x reverse clutch - thickness 0,063" / 1,60 mm - 36 external teeth - outer diameter 7,303" / 185,5 mm - inner diameter 6,457" / 164 mm - grey friction material - 1999-up
3x 2nd coast clutch - thickness 0,063" / 1,60 mm - 36 internal teeth - outer diameter 6,803" / 172,8 mm - inner diameter 5,791" / 147,1 mm - grey friction material - 1999-2001
3x 2nd coast clutch - thickness 0,063" / 1,60 mm - 36 external teeth - outer diameter 7,071" / 179,6 mm - inner diameter 6,102" / 155 mm - grey friction material - grooved - 1999-2001

During the end of 2001 and beginning 2002 the friction discs for 2nd clutch and 2nd coast clutch were changed - as not all vehicles / transmissions were changed at the same date, please check carefully for vehicles/transmissions from that period which friction discs are required for your job. THIS KIT CONTAINS THE EARLIER DISCS !!!

5L40E
