Identification 722.908, 722.965 - total length approx. 418 mm

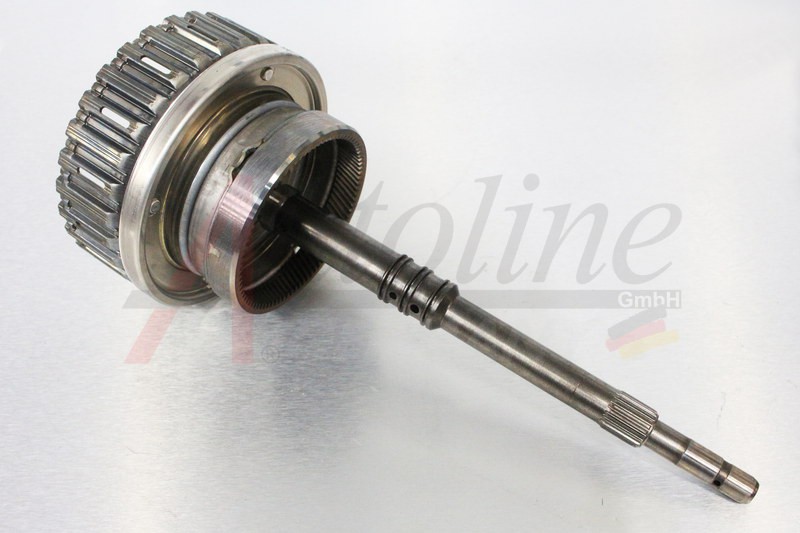

input shaft with C2 carrier without content

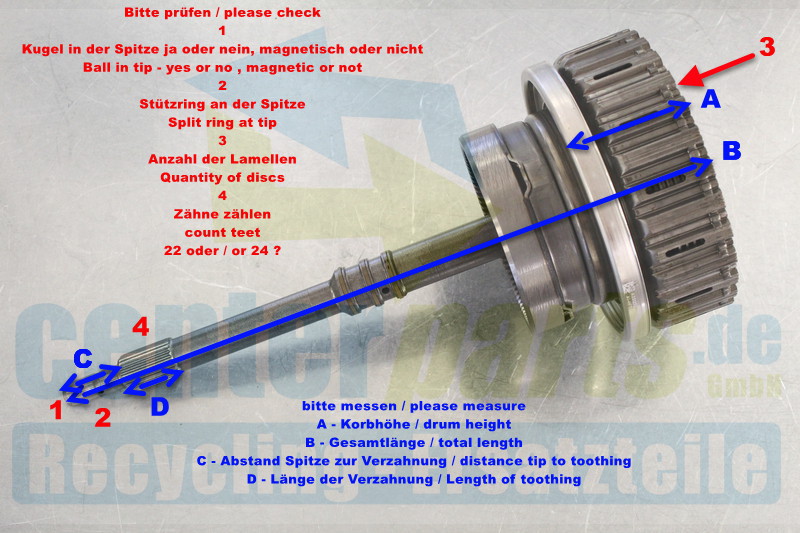

total length, approx. 418 mm splining: 22 teeth, outer diameter approx. 23,+ mm, height of splining approx. 24 mm distance from tip of shaft to splines approx. 63 mm check ball in tip of shaft: yes, non-magnetic
shaft C2C-722.9-1271 corresponding to 212 270 71 04 fits for specific transmission codes with 5+5 discs, with steel piston PIS-722.9-C2-35,4
You can find detailed information on the different versions in our web catalog for this article under the heading "Documents (Technical Informations)"
Various executions of this part are available for these transmissions
PLEASE CHECK CAREFULLY BEFORE INSTALLATION. WE WILL NOT TAKE RESPONSIBILITY FOR DAMAGES RESULTING FROM THE INSTALLATION OF A WRONG SPARE PART/COMPONENT.
The distinguishing features known to us to this day are stored for each article.
