Part no.: B-SDK-SWRA
steel disc kit
Bigger picture
In stock
Betaline
Betaline
Identification
MLYA, SLYA (2001-2005) - MHTA (2001-2006) - SMVA, SWRA (2002-up) - 11 discs
MLYA, SLYA (2001-2005) - MHTA (2001-2006) - SMVA, SWRA (2002-up) - 11 discs
Only for registered users

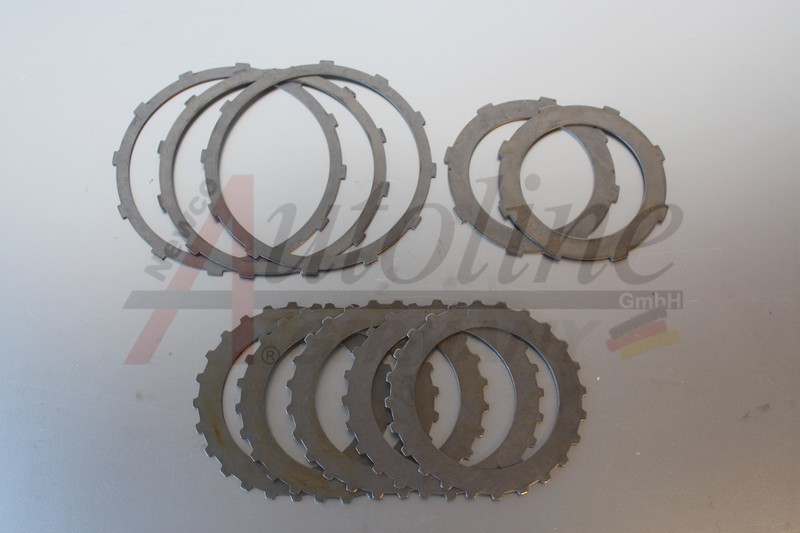

content: 10 discs
2x forward clutch - thickness: .078" / 2.0 mm -1996-up - 8 outer teeth - inner diameter: 3.230" / 82,04 mm
5x starting clutch (low) - thickness: .091" / 2.3 mm - 1996-up - 24 outer teeth - inner diameter: 3.440" / 87,38 mm
3x reverse brake - thickness: .053" / 1.34 mm - 1996-up - 12 outer teeth - inner diameter: 5.173" /131,39 mm
2x forward clutch - thickness: .078" / 2.0 mm -1996-up - 8 outer teeth - inner diameter: 3.230" / 82,04 mm
5x starting clutch (low) - thickness: .091" / 2.3 mm - 1996-up - 24 outer teeth - inner diameter: 3.440" / 87,38 mm
3x reverse brake - thickness: .053" / 1.34 mm - 1996-up - 12 outer teeth - inner diameter: 5.173" /131,39 mm
1
MLYA,SLYA, SMVA, SWRA
This part is part of the following kits
View this Part on the following exploded Views
