steel disc kit

1989-1998 - 21 discs (Raybestos)

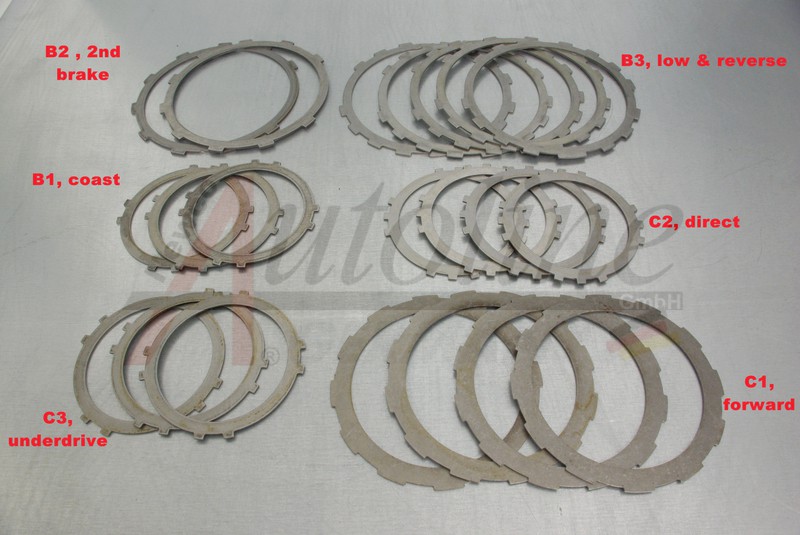

this kit contains:
4x C2, direct - thickness 0,071" / 1,80 mm - outer diameter 4.568" / 116 mm - 12 external teeth
4x C1, forward - thickness 0,071" / 1,80 mm - outer diameter 5.583" / 141,8 mm - 12 external teeth
5x B3, low & reverse - thickness 0,071" / 1,80 mm - outer diameter 6.634" /168,5 mm - 15 external teeth
2x B2 , 2nd brake - thickness - 0,098" / 2,49 mm - outer diameter 6.625" /168,28 mm - 10 external teeth
3x B1, coast - thickness 0,071" / 1,80 mm - outer diameter 4.562" /115,88 mm - 8 external teeth - required are 2-3 pcs.
3x C3, underdrive - thickness 0,071" / 1,80 mm - outer diameter 4.562" /115,88 mm - 8 external teeth - required are 3.4 pcs.

B1 and C3 discs are identical. Requirted are 2x B1 + 4x C3 or 3x B1 + 3x C3. Our kit conatins 6 discs B1/C3.

furter discs for the years 1989-1999 with different thickness and dimensions are avialable. They are not included in our kit.
C1, forward - thickness 0,077" / 1,95 mm - inner diameter 4.491" / 114,07 mm - 12 external teeth - brand ALTO
Transfer case - thickness 0.59" /1,50 mm - inner diamter 5.220" / 132,60 mm - 66 external teeth - brand ALTO

all steel discs are also available as single items.

AF20, AF22, 50-40LE, 50-42LE
