juego de discos de fricción

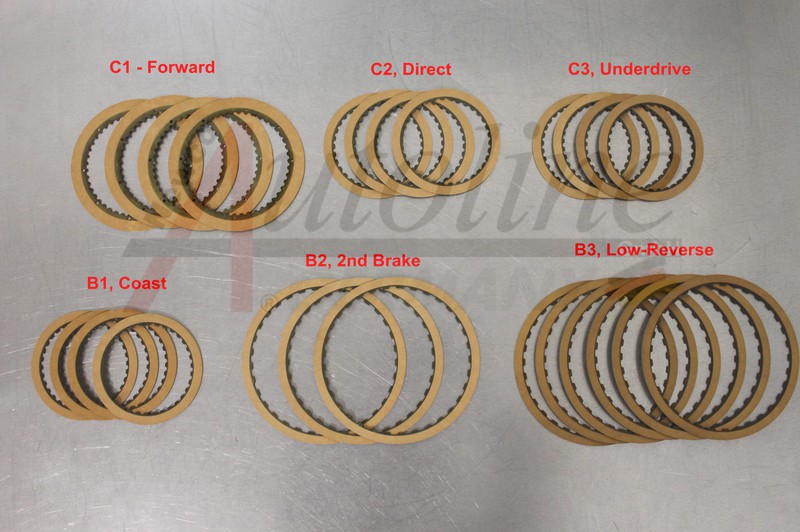

AW 50-40LE, 50-41LE - 1989-1998 - 25 Allomatic yellow colour discs

C1, forward - 46 internal teeth - 4 pcs.
C2, direct - 34 inner teeth - flat - 4 pcs.(some use less)
C3, underdrive - 34 inner teeth - flat - 4 pcs.(some use less)
B1, coast - 34 inner teeth - flat - 4 pcs.(some use less)
B2, 2nd brake - 33 inner teeth - 3 pcs.
B3, low-reverse - 33 inner teeth - 6 pcs.(some use less)

All discs in yellow/tan-colour. C2, C3, B1 use the same flat discs.

Total 25 pcs. - Quantity of discs to be used depends on application - our kit contains the maximum number of discs as pecified by the disc manufacturer.

We found that there might be differences depending on the vehcile and the area of use. North-American applications might not be interchangeable with European, Latin American or Asian applications and vice-versa. Therefore we also offer all available discs for these transmissions as single discs. Please make sure to check carefully what you need for your getting your job done. A catalogue showing all discs and available information can be found on our webpage in connection with the part numbers of the single friction discs and friction disc kits. "Cat-AW50-40/42-friction discs"

AW 50-40LE, AW 50-41LE, AF20, AF22
