Part no.: A-SUK-6HP26/28-IS-B
sub kit, input shaft
Bigger picture
In stock
Autoline
Autoline
Identification
6HP26, 6HP26A, 6HP26X, 6HP26A61, 6HP28, 6HP28A, 6HP28X, 6HP28A61, 6HP28AF, 6HP280, 6HP280X - 3x split ring with diagonal cut, outer diameter 25 mm
6HP26, 6HP26A, 6HP26X, 6HP26A61, 6HP28, 6HP28A, 6HP28X, 6HP28A61, 6HP28AF, 6HP280, 6HP280X - 3x split ring with diagonal cut, outer diameter 25 mm
the transmission manufacturer supplies the input shaft with E-clutch carrier without these rings

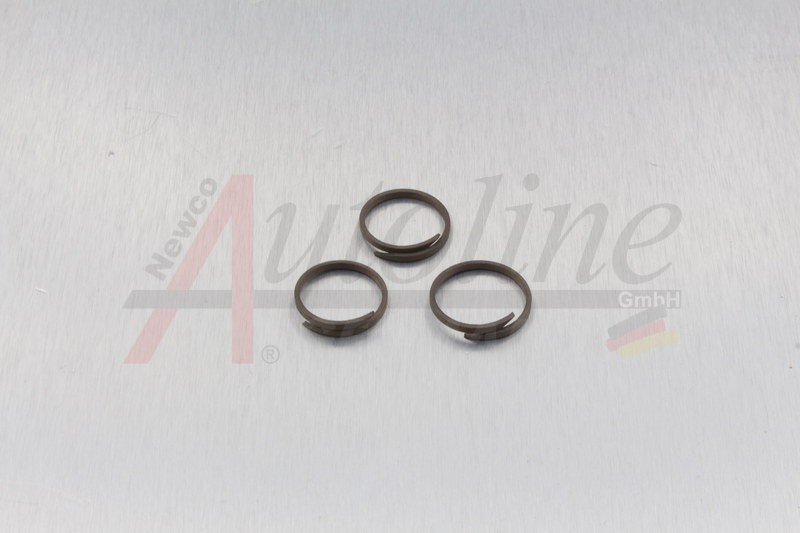

3x split ring with diagonal cut, outer diameter 25 mm
for some 6HP applications a split ring with step lock with outer diameter of 28 mm is used - our ref. O-SPR-6HP26-IS
PLEASE CHECK CAREFULLY BEFORE INSTALLATION. WE WILL NOT TAKE RESPONSIBILITY FOR DAMAGES RESULTING FROM THE INSTALLATION OF A WRONG SPARE PART/COMPONENT.
3x split ring with diagonal cut, outer diameter 25 mm
for some 6HP applications a split ring with step lock with outer diameter of 28 mm is used - our ref. O-SPR-6HP26-IS
PLEASE CHECK CAREFULLY BEFORE INSTALLATION. WE WILL NOT TAKE RESPONSIBILITY FOR DAMAGES RESULTING FROM THE INSTALLATION OF A WRONG SPARE PART/COMPONENT.
input shaft on E-clutch carrier
1
6HP26, 6HP26A, 6HP26X, 6HP26A61
6HP28, 6HP28A, 6HP28X, 6HP28A61, 6HP28AF
6HP280, 6HP280X
6HP28, 6HP28A, 6HP28X, 6HP28A61, 6HP28AF
6HP280, 6HP280X
This part is part of the following kits
